SUPER ARCH FENDER

Arched fender, also known as trapezoidal fenders, was introduced to improve the performance of cylindrical fender. It is very popular with an improved energy/reaction ratio and is recommended for all types of applications, especially those where a small distance between the dock wall and the vessel must be maintained. The shape of the arched fender helps to spread the pressure evenly.

JettyGuard's Arch Fender is a simple and robust marine fender system that provides reliable and trouble-free service for a wide range of berths, even in the harshest conditions.

We offer a wide range of arch fenders with varying performance and slightly different sizes to meet the needs of different customers.

The JDA-A arched fender is the standard arched fender in the traditional all-in-one design.

The JDA-B fender has embedded steel plates, so it can be equipped with UHMW-PE front panels or steel plates or integrated into other structures.

Both types of arched fenders (JDA-A and JDA-B) have a standard height of 250 to 1,000 mm and a standard length of 1,000 to 3,500 mm

The corner arch fenders are available in three standard sizes and offer simple, easy-to-install solutions to prevent berth angles from being damaged by smaller vessels.

ARCH FENDER SPECIFICATION

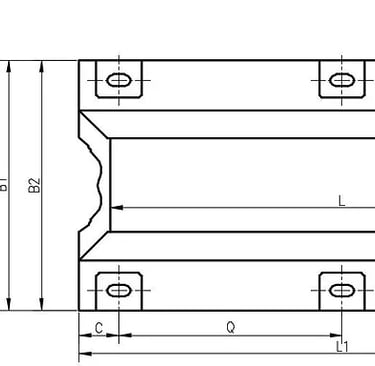

Arch fender specification

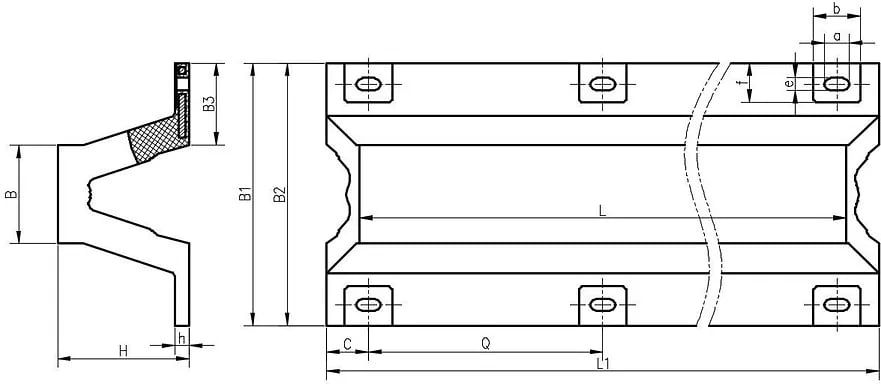

Arch fender specification
